BRAND | Intorq |
Product | 14.800.10.12.8, 00123471 |

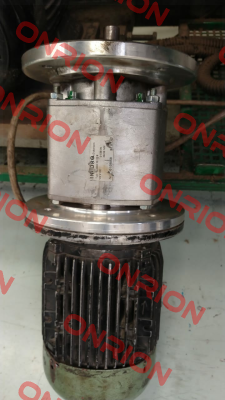

Description | Clutch brake |
Internal code | ONR4003413 |
Custom code | 85052000 |

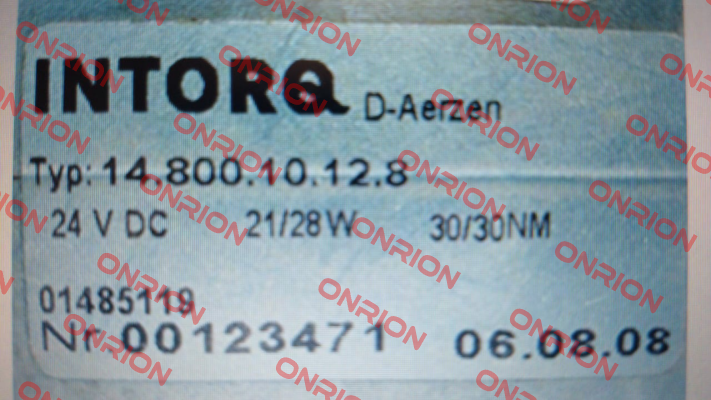

Technical specification | Type INTORQ 14.800.10.12.8 Output unit Brake Rated voltage 24 V Power at 20 ° C 21 W Rated torque 30 Nm Shaft diameter 24 mm Tolerance on shaft K6 according to DIN 748/3 Flange diameter 200 mm Drive Clutch Rated voltage 24 V Power at 20 ° C 28 W Rated torque 30 Nm Diameter of hollow shaft 24 mm Tolerance on hole G7 Flange diameter 200 mm Max. revolutions 3,000 r / min Detail of anchor without backlash when twisting |
Discover the superior quality and performance of the Intorq 14.800.10.12.8, 00123471 with Onrion LLC in United States . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The 14.800.10.12.8, 00123471 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of 14.800.10.12.8, 00123471 :
At Onrion LLC , we offer the 14.800.10.12.8, 00123471 at competitive prices and with the fastest delivery times across United States . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose Onrion LLC ?
Get Your Quote Today! Ready to enhance your operations with the 14.800.10.12.8, 00123471 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Intorq products, Onrion LLC is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
