Buy BS03-34V/DHE08MA4-TF-K2A003 from Bauer in United States

BRAND	Bauer
Product	BS03-34V/DHE08MA4-TF-K2A003
Description	Motor
Internal code	ONR3375270
Weight	14

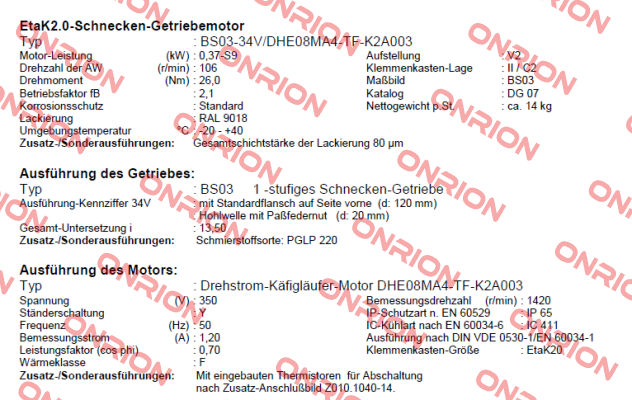

Technical specification	Product no.: 188Y6675 Etak2.0 worm gear motor Tipo: BS03-34V/DHE08MA4-TF-K2A003 Engine power (kW): 0.37-S9 Installation: V2 AW speed (r/min): 106 Terminal box location: II/C2 Torque (Nm): 26.0 Dimension Image: BS03 Operating Factor fB: 2,1 Catalogue: DG 07 Corrosion protection: standard net weight p.st.: approx. 14 kg Paint: RAL 9018 Ambient temperature °C: -20 - +40 Additional/special versions: total coating thickness of 80 μm Gearbox design: Type: BS03 1-stage worm gear reducer Version code number 34V: with standard flange on the front side (d: 120 mm) hollow shaft with keyway (d: 20 mm) Overall reduction ratio i: 13.50 Additional/special versions: Lubricant grade: PGLP 220 Engine design: Type: three-phase squirrel cage motor DHE08MA4-TF-K2A003 Voltage (V): 350 Rated Speed (r/min): 1420 Stator connection: Y IP protection class according to EN 60529: IP 65 Frequency (Hz): 50 IC cooling mode according to EN 60034-6: IC 411 Rated current (A): 1.20 Version according to DIN VDE 0530-1/EN 60034-1 Power Factor (Cos Phi) :0.70 Terminal Box Size: ETak20 Heat class: F Additional/special versions: With built-in thermistors for shutdown according to additional connection diagram Z010.1040-14. Operation via fitted frequency inverters: in the frequency range Hz: 5 15 50 100 Power kW: 0.026 0.115 0.37 0.37 Synchronous speed of AW n2:11 33 111 220 Load torque (Nm): 13.6 21 25.5 10.7 Load current approx. A: 0.99 1.12 1.2 0.95 Technical data of the frequency converter with accessories: type: ETak2.0 Model: K2A003 : with memory module Power: 0.37 kW - BG 1 Power plug: M12 Communication unit: with PROFIBUS Construction: motor mounted Inverter data: Mains voltage: 380V... 500V Mains frequency: 50/60 Hz Output current: 1.3/1.1 A (at mains voltage 400/480 V) Degree of protection: IP65 Precautions against: motor overtemperature : i2t monitoring : 200% rated motor torque for 3 s : 150% rated motor torque for 60 s : integrated PID controller Approvals: CE, UR, CuR, RoHS Parameter set: default Efficiency: The motor and frequency converter combinations (PDS) are classified according to IEC 61800-9-2 and meet system efficiency class IES 2.

Discover the superior quality and performance of the Bauer BS03-34V/DHE08MA4-TF-K2A003 with Onrion LLC in United States . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.

The BS03-34V/DHE08MA4-TF-K2A003 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.

Key Features of BS03-34V/DHE08MA4-TF-K2A003 :

High Performance: Engineered to deliver exceptional results.
Durable Construction: Built with high-quality materials for long-lasting use.
Innovative Design: Incorporates the latest technology for enhanced efficiency.
Cost-Effective: Offers great value for money with competitive pricing.

At Onrion LLC , we offer the BS03-34V/DHE08MA4-TF-K2A003 at competitive prices and with the fastest delivery times across United States . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.

Why Choose Onrion LLC ?

Expert Assistance: Get help from our knowledgeable team for all your product-related questions.
Competitive Prices: We offer some of the best prices in the market.
Fast Delivery: Benefit from our efficient delivery network for quick turnaround times.
Customer Satisfaction: Our commitment to customer service ensures a great buying experience.

Get Your Quote Today! Ready to enhance your operations with the BS03-34V/DHE08MA4-TF-K2A003 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.

Important Notice: While we supply Bauer products, Onrion LLC is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
