| BRAND | Carlo Gavazzi |

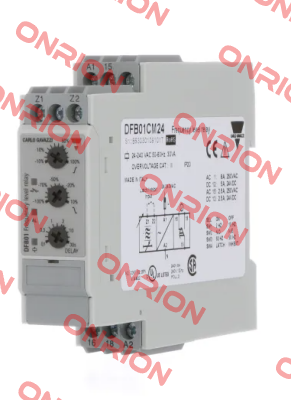

| Product | DFB01CM24 |
| Description | OUTPUT SIGNAL 1 relay SETPOINTS 2, adjustable MONITORED |
| Internal code | ONR249728 |
| Weight | 0.14 |
| Technical specification | Monitoring Relays Frequency Monitoring Types DFB01, PFB01 DFB01 PFB01 • Over/under frequency monitoring relays • Measuring if power supply frequency is within set limits • Measure on own power supply • Measuring ranges Voltage: 24 to 240 VAC Frequency: 50 - 60 Hz • Separately adjustable upper/lower level on relative scale • Adjustable delay on alarm or on recovery (0.1 to 30 s) • Programmable latching or inhibit at set level • Output: 8 A SPDT relay N.D. or N.E. selectable • For mounting on DIN-rail in accordance with DIN/EN 50 022 (DFB01) or plug-in module (PFB01) • 22.5 mm Euronorm housing (DFB01) or 36 mm plug-in module (PFB01) • LED indication for relay, alarm and power supply ON Product Description Ordering key DFB 01 C M24 DFB01 and PFB01 are pre- cise frequency monitoring relays. The relays monitor their own power supply from 24 to 240 VAC. The advantage of using the latch function isthat the relay can be kept energized even after the end of the alarm condition. Inhibit func- tion can be used to avoid relay operation when not desired(maintenance, tran- sitions). The LED's indicate thestateofthealarm and the output relay. Housing Function Type Item number Output Power Supply Type Selection Mounting OutputMeasuring rangeSupply: 24 to 240 VAC DIN-rail SPDT50-60 HzDFB 01 C M24 Plug-inSPDT50-60 HzPFB 01 C M24 InputSpecificationsOutput Specifications Input Own power supplyDFB01: A1, A2 (24 to 240 VAC) PFB01: 2, 10 (24 to 240 VAC) Measuring ranges Upper levelLower level Selectable by DIP-switches 2 Hz range-0.2 to +2 Hz-2 to +0.2 Hz 50 Hz 49.8 to 52 Hz48 to 50.2 Hz 60 Hz 59.8 to 62 Hz58 to 60.2 Hz 10 Hz range-1 to +10 Hz -10 to +1 Hz 50 Hz49 to 60 Hz 40 to 51 Hz 60 Hz59 to 70 Hz 50 to 61 Hz Contact input DFB02Terminals Z1, Z2 PFB02Terminals 8, 9 Disabled > 10 kΩ Enabled< 500 Ω Pulse width > 500 ms Hysteresis OutputSPDT relay Rated insulation voltage250 VAC Contact ratings (AgSnO2)µ Resistive loadsAC 1 8A @ 250 VAC DC 12 5 A @ 24 VDC Small inductive loads AC 15 2.5 A @ 250 VAC DC 13 2.5 A @ 24 VDC Mechanical life≥ 30 x 106 operations Electrical life ≥ 105 operations (at 8 A, 250 V, cos ϕ = 1) Operating frequency≤ 7200 operations/h Dielectric strength Dielectric voltage≥ 2 kVAC (rms) Rated impulse withstand volt.4 kV (1.2/50 µs) 2 Hz range~ 0.05 Hz 10 Hz range~ 0.25 Hz |
Discover the superior quality and performance of the Carlo Gavazzi DFB01CM24 with Onrion LLC in United States . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The DFB01CM24 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of DFB01CM24 :
At Onrion LLC , we offer the DFB01CM24 at competitive prices and with the fastest delivery times across United States . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose Onrion LLC ?
Get Your Quote Today! Ready to enhance your operations with the DFB01CM24 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Carlo Gavazzi products, Onrion LLC is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
